RX70AMP

HDBaseT Receiver w 30W Amplifier

Available Colours
Black matt
  • HDBaseT Receiver w/ Integrated Amp
  • Extends HDMI up to 70m over CAT
  • Supports 4K UHD video up to 40m
  • Local HDMI & Audio input
  • ARC enabled
  • 30w per channel digital amplifier
  • Bi-directional IR & RS232 pass-thru
  • HDCP 1.4 compliant
  • RRP: $999.00

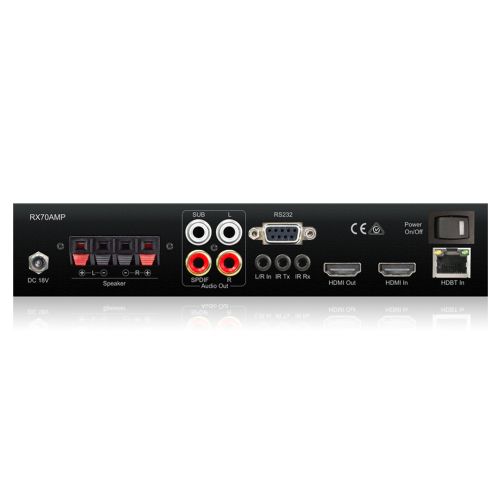

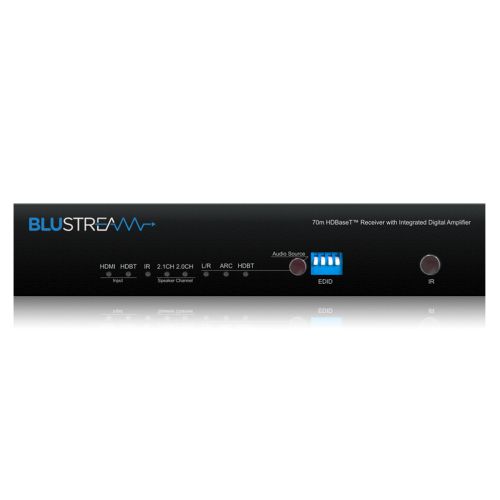

Our RX70AMP HDBaseT™ Receiver with integrated audio amplifier delivers advanced integration of audio within an AV installation. The HDBaseT™ receiver enables HDMI and Bi-directional IR to be received from up to lengths of 70m over a single CAT cable. The audio from the HDBaseT™ signal can then be extracted and output via either the 30W 2.1 digital amplifier or digital audio output. The RX70AMP also features local HDMI and Audio inputs, ARC integration, line level output, EDID management and RS-232 control.

Key Features:

  • Integrated 2.1 Class-D 2x 30 watt per channel digital stereo amplifier
  • Analogue pre-out left/right output and subwoofer output
  • 3x Audio inputs:-
  •   - HDBaseT™ / Local HDMI source
  •   - ARC (Audio Return Channel) from connected compatible display device
  •   - Local analogue left/right stereo audio input
  • Extends HDMI up to distance of 70m over single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio de-embedded to both analogue L/R audio and coaxial digital outputs concurrently
  • Supports Audio Return Channel (ARC)* via HDMI and optical input (selectable)
  • Supports bi-directional RS-232 pass through
  • Supports bi-directional IR from all input and output locations
  • Supplied with Blustream IR receivers and emitters
  • Control via IR (remote control included), RS-232
  • Control via front panel button for audio source
  • Advanced EDID management
  • HDCP1.4 compliant
