MFP112

Multi-Format Presentation Switch

Available Colours
Black matt
  • Multi-Format Presentation Switch
  • 11x input: 4x HDMI, 4x VGA, HDBaseT
  • + YPbPr, CVBS.
  • 1x HDMI / 1x HDBaseT output
  • Selectable Splitter/Switcher modes
  • Up-scaling and down-scaling capable
  • Audio Embedding
  • HDCP 1.4 compliant
  • RRP: $1,999.00

Our MFP112 is a multi-format presentation switcher within-built video scaling, audio embedding, de-embedding, EDID management and HDBaseT™ input and output. The MFP112 works in 2 modes, first as a 11 input dual output switcher, alternatively each output can work independently with HDMI output 1 routing the 1x HDBaseT™ + 4x HDMI inputs only and output 2 switching all 11 video + audio inputs.

With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations.

Key Features:

  • Switcher can function in 2 modes:-
  •   - Splitter mode - Both HDMI output 1 & HDBaseT™ output 2 display the same selected input.
  •   - Matrix Switcher mode - HDMI inputs are independently switchable to HDMI output 1 & HDBaseT™ output 2. HDMI output 1 has access to HDBaseT™ input + HDMI inputs 1-4 ONLY (HDMI signal pass-through including 4K resolution), whilst HDBaseT™ output 2 has access to all HDMI, HDBaseT™ and analogue video inputs with associated audio.
  • HDBaseT™ output (output 2) for distribution of video sources up to 100m (4K up to 70m) with bi-directional IR, RS-232, LAN serving and EDID management.
  • HDBaseT™ input for integration of remote HDMI sources up to 100m distance (4K up to 70m) with bi-directional IR and LAN serving
  • Built-in video scaling, both up-scaling (maximum of 1080p) and down-scaling capabilities (including 4K to lower resolutions).
  • Video inputs support all industry standard video resolutions including VGA-WUXGA and 480i-4K.
  • Scaled video output resolutions include 720p, 1080P, 1280x1024, 1024x768, 1360x768, 1440,900, 1680x1050
  • Audio embedding - independent analogue L/R audio input can be embedded to HDMI/HDBaseT™ outputs + analogue L/R audio and Coaxial digital outputs concurrently (feature available on HDMI/HDBaseT™ outputs 1+2 in Splitter mode and HDBaseT™ output 2 only in Matrix Switcher mode).
  • HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 when in Matrix Switcher mode)
  • Volume control of HDMI, line-level analogue L/R audio and Coaxial digital outputs
  • PoH to compatible Blustream Transmitters & Receivers (local power required when using HEX100ARC-RX)
  • Supports all known HDMI audio formats on HDMI pass-through, including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission

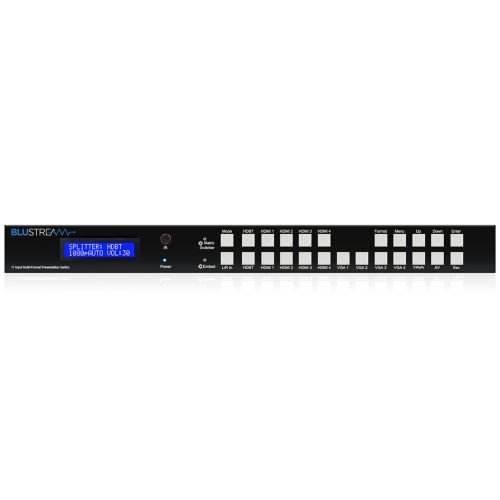

  • Front panel display for status feedback
  • Control via front panel, IR, RS-232 and TCP/IP
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP 1.4 compliant

    Click here for more info, manuals, drivers and protocols
