HEX70ARC-KIT

HDBaseT ARC Extender Set

Available Colours
Black matt
  • HDBaseT™ ARC Extender Set
  • Extends HDMI 1080p up to 70m
  • Supports 4K UHD video up to 40m
  • Uncompressed AV with zero latency
  • Bi-directional IR pass-thru / PoC
  • Supports ARC via HDMI/optical input
  • Inc Blustream IR receiver & emitter
  • HDCP 2.2 compliant
  • RRP: $799.00

The HEX70ARC-KIT 4K HDBaseT™ ARC extender set offers market leading features for the custom installation industry.

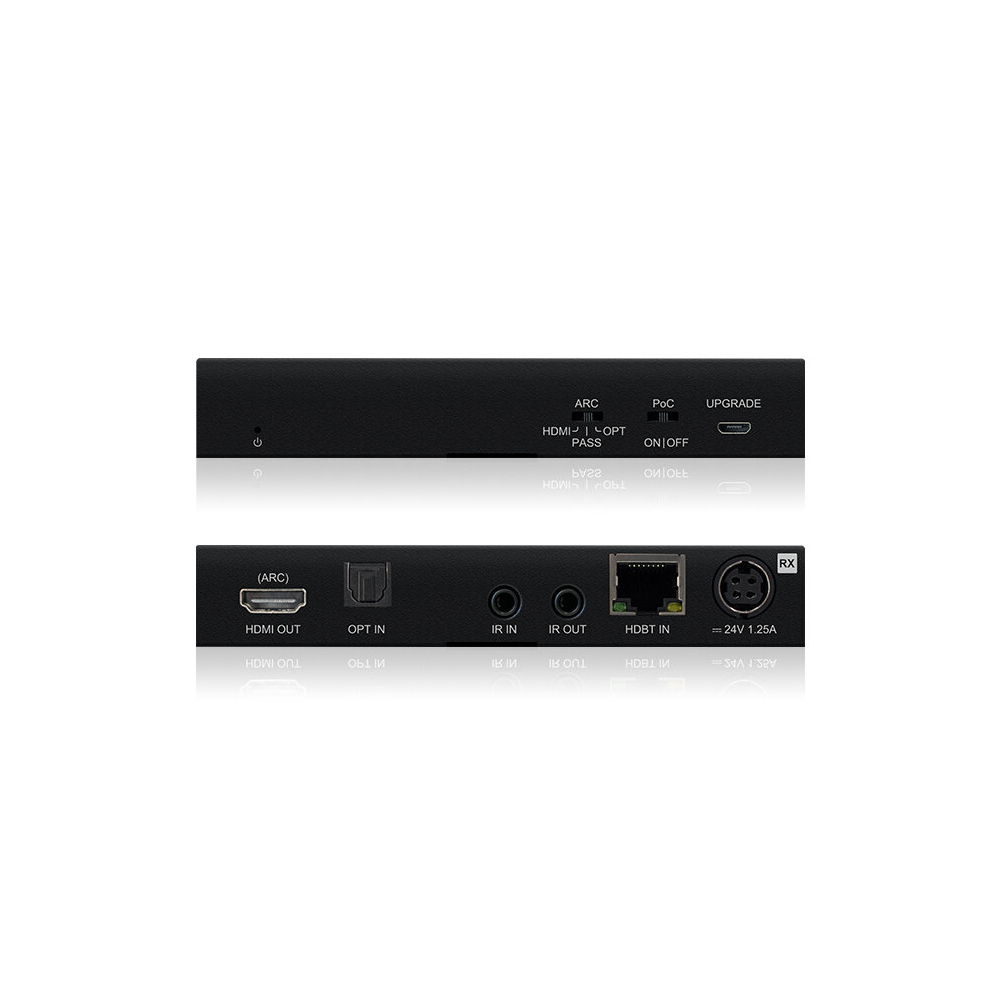

The product delivers HDMI, ARC, Optical Audio Return, Bi-directional IR and Bi-directional PoC (Power over Cable) up to lengths of 70m (40m at 4K 60Hz 4:2:0).

• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
• Extends HDMI 1080p up to a distance of 70m over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports ARC (Audio Return Channel) from connected display via HDMI ARC or optical digital input

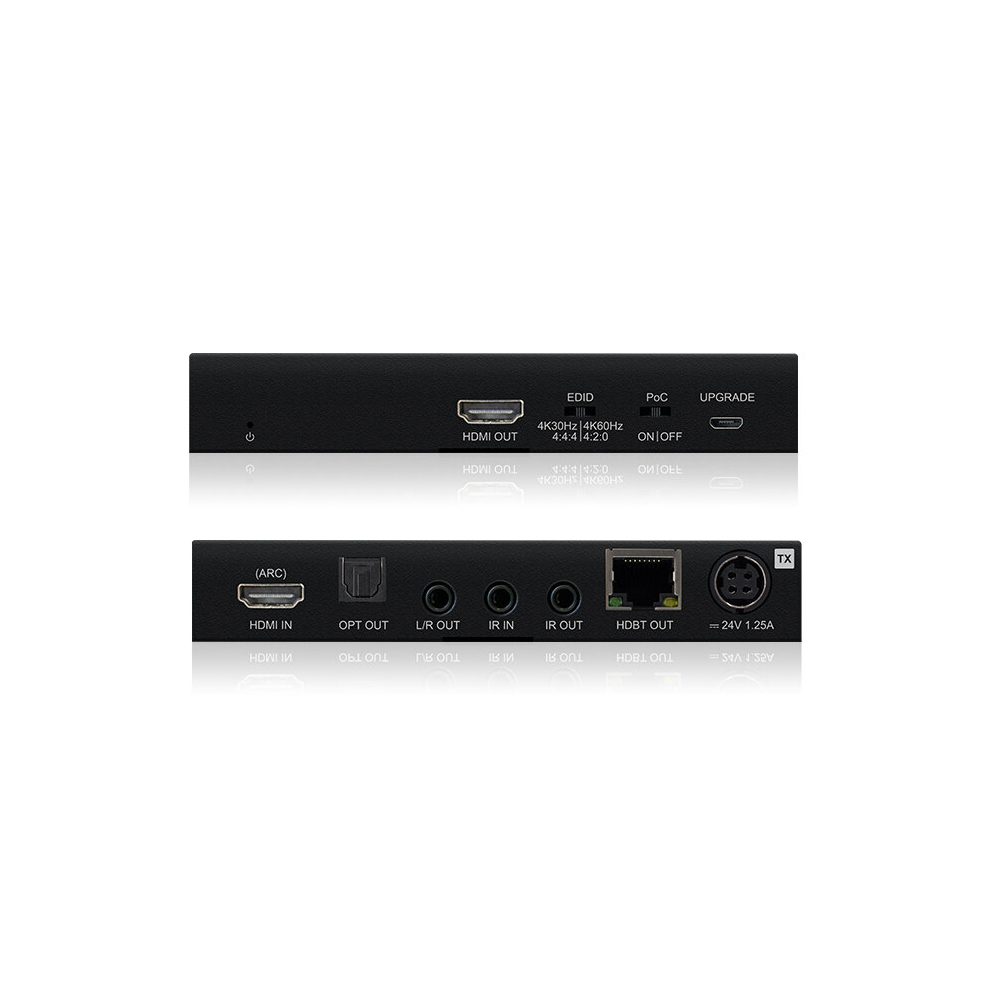

• Features 1 x HDMI loop-out on HEX70ARC-TX for integrating local displays or cascading to multiple devices
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX)
• Bi-directional IR pass-through
• Supplied with Blustream IR receiver and emitter
• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• HDCP 2.2 compliant with smart EDID management

*Please note: Optical and L/R audio breakout on the HEX70ARC-TX are for audio return channel use only. HDMI source audio cannot be broken out from these connections.
