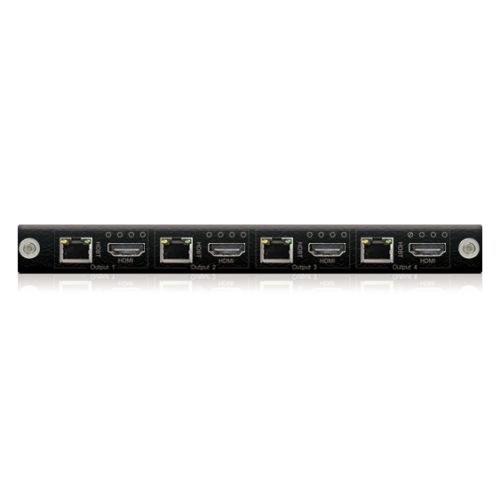

The PRO-OUT4TLS output board offers 4x dual HDMI / HDBaseT™outputs for connection to a HDBaseT™ receiver and HDMI display per zone. The PRO-OUT4TLS also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
Key Features:
- Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
- Features 4x simultaneous HDMI / HDBaseT™ outputs for connection to HDMI displays / AVR's and compatible Blustream HDBaseT™ receivers
- Extends 1080p HDMI up to a distance of 70m over single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
- HDCP 2.2 compliant
- To be used with the HEX70B-RX or HEX70ED-RX receivers
