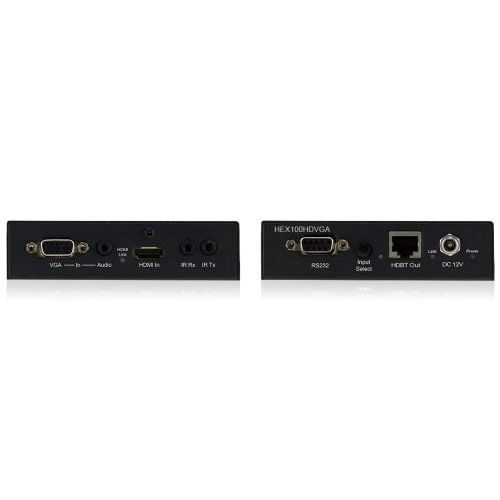

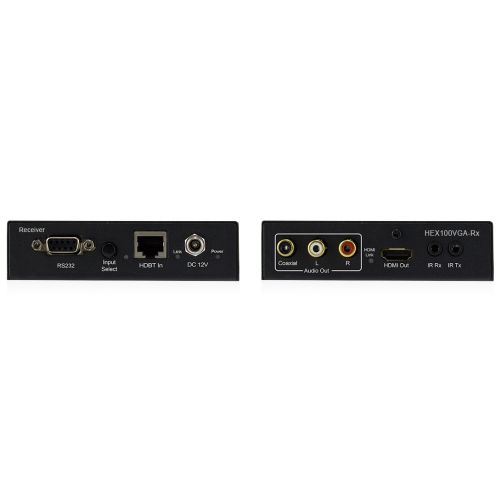

Our HEX100HDVGA-KIT extender set is an industry leading 4K UHD HDBaseT™ solution that delivers switchable HDMI and VGA inputs.
The extender set also transmits Bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT cable.
• Extends HDMI and VGA / Audio up to a distance of 100m over single CAT cable
• Auto signal sensing switches between HDMI and VGA/Audio inputs. Will display last input signal connected
• Manual switching between inputs using toggle button or RS-232 control on either transmitter or receiver
• Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports industry standard video resolutions from 480i-4K and most industry standard VGA resolutions (check manual for full list of supported VGA resolutions)
• Supports full 3D signal display
• Supports CEC bypass (Consumer Electronics Control) - HDMI only
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports bi-directional RS-232 pass-through
• Supports bi-directional IR from all input and output locations
• Supplied with Blustream IR receiver and emitters
• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• HDCP 1.4 compliant
