CLEARANCE ITEM
WAS $1104.00 INC GST
NOW $800.00 INC GST
LIMITED STOCK AVAILABLE

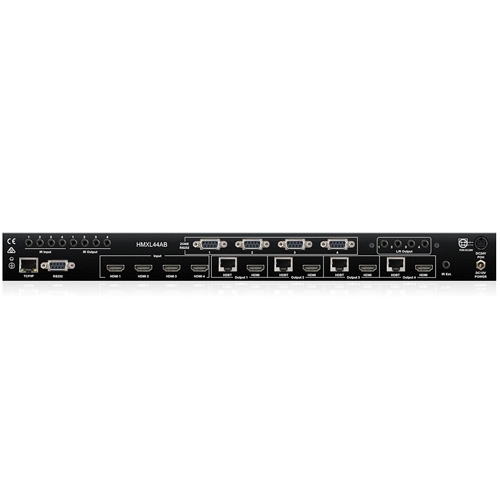

Our Essential 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The HMXL44-KIT is a 4K 4x4 matrix package, delivering HDMI, Bi-directional IR and PoH (Power over HDBaseT™) up to lengths of 70m over a single CAT cable. The matrix also provides advanced features including Audio breakout, simultaneous HDMI outputs, and RS-232 pass through to enable 3rd party control of displays. The HMXL44- KIT is supplied with 4 x HEX70ED Receivers.
Key Features:
- Features 4x HDMI inputs which can be independently routed to 4x HDBaseT™/HDMI outputs
- Simultaneous HDBaseT™ and HDMI outputs to allow connection to dual displays per zone
- HDMI analogue audio de-embedded to associated analogue L/R audio outputs (HDMI digital audio signals not de-embedded)
- Extends up to a distance of 70m over single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmissions
- Supports bi-directional IR from all input and output locations
- Supplied with Blustream IR receivers and emitters
- Control via front panel, IR, RS-232 and TCP/IP
- Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers
- 3rd Party drivers available for all major home control brands
- Advanced EDID management
- HDCP1.4 compliant
- Matrix kit is supplied with 4x HEX70ED-RX HDBaseT™ receivers
- 1U Design for 19" rack mount integration - mounting kit included
