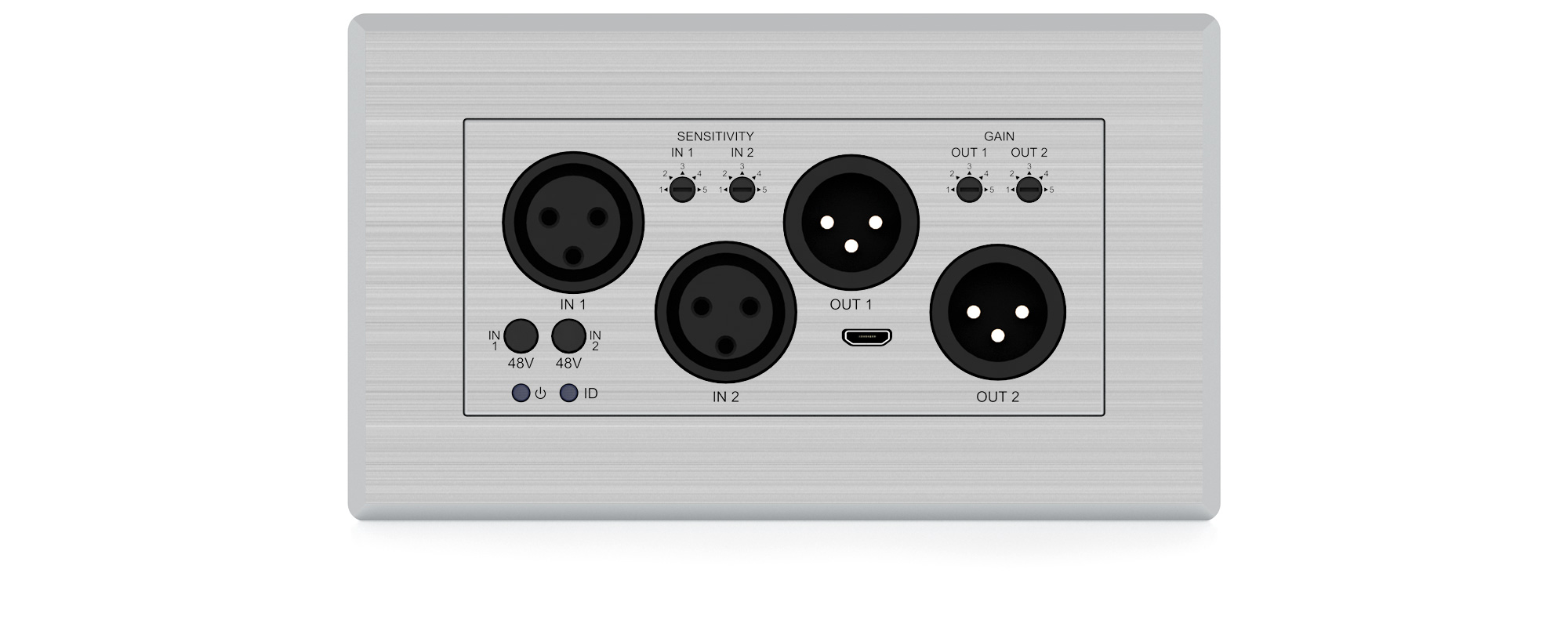

The DA22XLR-WP is a multi-input / output wall plate to convert analogue audio within a digital Dante® networked audio system.
The DA22XLR-WP features 2 input channels of balanced / unbalanced / MIC audio with switchable 48v phantom power and 2 output channels of balanced / unbalanced audio.
The DA22XLR-WP is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport and magnetic faceplate design allows for both UK & EU backbox compatibility.
• Dante® network wall plate interface for 2 x audio inputs and 2 x audio outputs
• Converts 2 x balanced / unbalanced / MIC audio sources to Dante® audio channels
• Converts 2 x Dante® audio channels to balanced / unbalanced audio outputs
• Switchable 48V Phantom power for each MIC XLR input
• Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input
• Adjustable line gain from +18 dBu to -10 dBV for each XLR output
• Supports: 44.1, 48 & 96kHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
• Supports power via 12V DC adapter (not included) for when network switch does not support PoE
• Magnetic faceplate surround allowing for both UK & EU backbox compatibility
*Dante® is a registered trademark of Audinate Pty Ltd
